| คอนดักเตอร์: | ทองแดงกระป๋องควั่น | ฉนวนกันความร้อน: | เอสอาร์-พีวีซี |
|---|---|---|---|
| เสื้อแจ็กเกต: | พีวีซี | แอปพลิเคชัน: | อุตสาหกรรม ไฟฟ้าสำหรับผู้บริโภค ฯลฯ |
| แรงดันไฟฟ้า: | 30V | อุณหภูมิ: | 80°C |
| การบรรจุ: | บรรจุในม้วน | ฮวาเต็ก: | HT2602039 |
| เน้น: | SR-PVC Insulation Industrial Flexible Cable,30V Rated Voltage UL20276 Cable,80℃ Temperature Resistance Tinned Copper Stranded Cable |
||

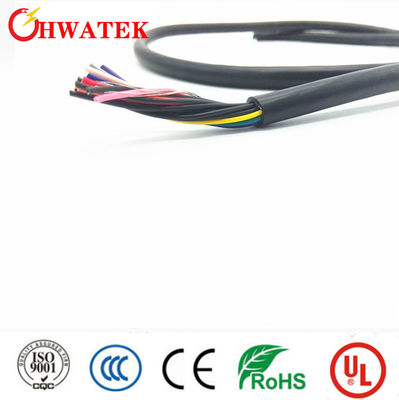

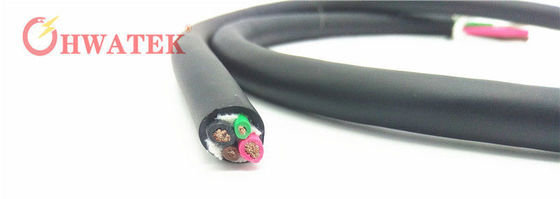

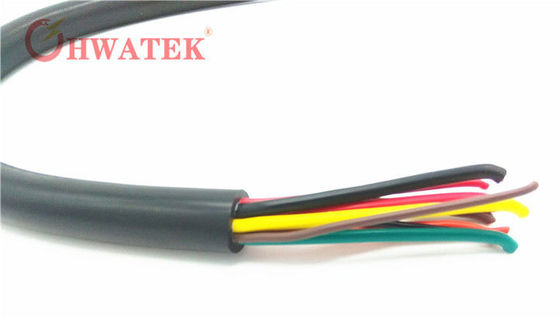

UL20276 8C×28AWG+AB Tinned copper stranded Industrial Flexible Cable wIth SR-PVC Insulation PVC Jacket
| Construction | ||||
| Conductor | Tinned copper stranded | |||
| Cross section | 28AWG | |||
| Construction | 7/0.127mm | |||
| Strand Dia. | 0.38mm | |||
| Insulation | SR-PVC | |||
| Nom.Thickness | 0.18mm | |||
| Min.Thickness | 0.15mm | |||
| Insulation Dia. | 0.80±0.08mm | |||
| Insulation colour | 1.black 2.blue 3.red 4.white 5.orange 6.green 7.gray 8.yellow | |||
| Material | Al-mylar Foil face out ≥25% | |||
| Filler | Optional | |||
| Assembly | 8C×28AWG | |||
| Braid | Tinned copper,0.08mm,≥80% | |||
| Jacket | PVC | |||
| Nom.Thickness | 0.38mm | |||
| Min.Thickness | 0.33mm | |||
| O.D. | 4.70±0.20mm | |||
| Colour | Per request | |||
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:SR-PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.black 2.blue 3.red 4.white 5.orange 6.green 7.gray 8.yellow
Jacket Color : per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL20276
RoHS
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):239Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
