รายละเอียดสินค้า:
การชำระเงิน:
|
| คอนดักเตอร์: | ทองแดงเปลือยควั่น | ฉนวนกันความร้อน: | พีพี |
|---|---|---|---|
| เสื้อแจ็กเกต: | ทีพียู | แอปพลิเคชัน: | อุตสาหกรรม ไฟฟ้าสำหรับผู้บริโภค ฯลฯ |
| แรงดันไฟฟ้า: | 300V | อุณหภูมิ: | -40-80 ℃ |
| การบรรจุ: | บรรจุในม้วน | ฮวาเต็ก: | HT2601022 |
| เน้น: | Tinned Copper Stranded Industrial Flexible Cable,PP Insulation Industrial Flexible Cable,300V Rated TPU Jacket Cable |
||

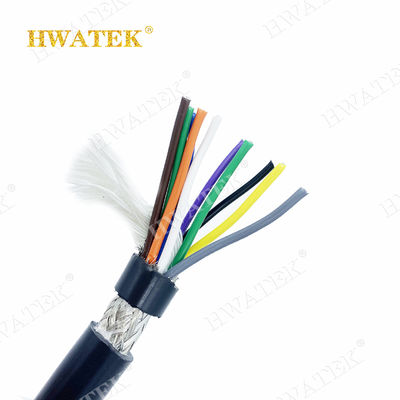

Customize 3×(1P×26AWG+DA+Hot mylar) Tinned copper stranded Industrial Flexible Cable wIth PP Insulation TPU Jacket
| Construction | ||||
| Conductor | Tinned copper stranded | |||
| Cross section | 26AWG | |||
| Construction | 7/0.16mm | |||
| Strand Dia. | 0.48mm | |||
| Insulation | PP | |||
| Nom.Thickness | 0.25mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | 1.blue&red 2.blue&white 3.bleu&gray | |||
| Twisted pair | 1P×26AWG | |||
| Drain | Tinned copper stranded,7/0.16mm | |||
| Material | Al-mylar(Face in),Overlap rate≥25% | |||
| Material | Hot mylar | |||
| Twisted O.D. | 2.286mm pitch:38mm | |||
| Material | Mylar,Overlap rate≥25% | |||
| Material | Al-mylar(Face in),Overlap rate≥50% | |||
| Filler | Polypropylene | |||
| Assembly | 3×(1P×26AWG+DA+Hot mylar)+Mylar+AM pitch:38mm | |||
| Jacket | TPU | |||
| Nom.Thickness | 1.27mm | |||
| O.D. | 7.20±0.30mm | |||
| Colour | Per request | |||
| Electric Performance | ||||||
| Rated Temperature | -40-80℃ | |||||
| Voltage rating | 300V | |||||
| Max.conductor DC resistance(20℃) | 150Ω/km | |||||
| Dielectric Strength AC | 2.00kV/1min | |||||
| Impedance | 3M:75±7Ω | |||||
| Boltage breakdown | Core to core 2KV AC | |||||
| Core to Shield 2KV AC | ||||||
| Sheld to shield 1KV AC | ||||||
| Insulation resistance(20℃) | Shield to shield 10MΩ·1000FT | |||||
| Core to shield 2000MΩ·1000FT | ||||||
| Inductance(1KHz) | 0.2UH/FT | |||||
| Capacitance(1KHz) | Core to shield 43pF/FT | |||||
| Core to core 21pF/FT | ||||||
Insulation:PP
Conductor : Tinned copper stranded
Construction
Insulation: 1.blue&red 2.blue&white 3.bleu&gray
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Technical data
Rated voltage:300V
Rated Temperature: -40-80℃
Max.conductor DC resistance(20℃):150Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
