รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุตัวนำ: | ทองแดงกระป๋องควั่น | วัสดุฝัก: | พีวีซี |
|---|---|---|---|
| วัสดุฉนวน: | พีวีซี | แรงดันไฟฟ้า: | 30V |
| อุณหภูมิที่ได้รับการจัดอันดับ: | 80ºC | ความต้านทานตัวนำสูงสุด: | 239Ω/กม |
| แรงดันไฟฟ้าของสายเคเบิล: | 0.50kV/1 ไมล์ | รายละเอียด: | HT2505407 |

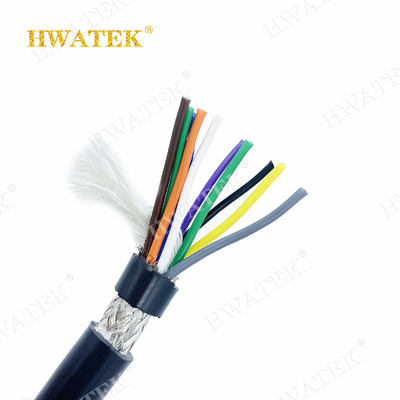

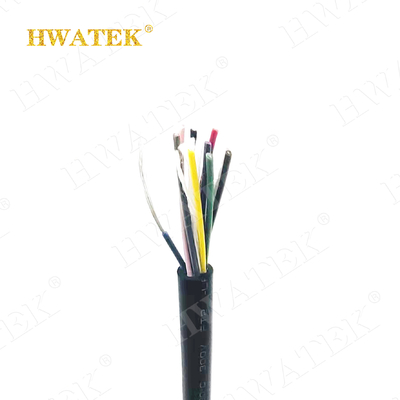

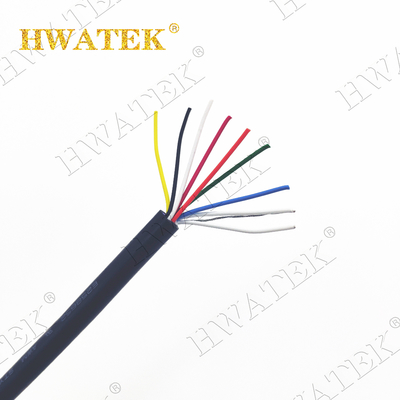

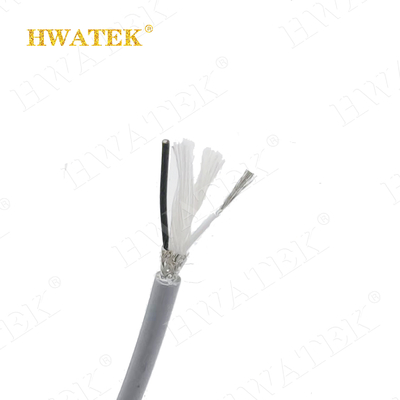

| เน้น: | 80℃ Rated Temperature Industrial Flexible Cable,30V Rated Voltage UL20276 Cable,20P×28AWG+W Construction Tinned Copper Stranded Cable |
||
| Construction | ||||
| Conductor | Tinner copper stranded | |||
| Cross section | 28AWG | |||
| Construction | 7/0.127mm | |||
| Strand Dia. | 0.38mm | |||
| Insulation | SR-PVC | |||
| Nom.Thickness | 0.23mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 0.90±0.08mm | |||
| Insulation colour | See the colour table | |||
| Twisted | 1.80mm | |||
| Filler | Optional | |||
| Material | Non-woven | |||
| Assembly | 20P×28AWG+A | |||
| Jacket | PVC | |||
| Nom.Thickness | 0.76mm | |||
| Min.Thickness | 0.61mm | |||
| O.D. | 9.80±0.40mm | |||
| Colour | Per request | |||
| Electric Performance | ||||||||
| Rated Temperature | 80℃ | |||||||
| Voltage rating | 30V | |||||||
| Max.conductor DC resistance(20℃) | 239Ω/km | |||||||
| Dielectric Strength AC | 0.50kV/1min | |||||||
| Mechanical Performance | ||||||||
| Jacket | ||||||||
| Material | PVC | |||||||
| Tensile strength | ≥10.3MPa | |||||||
| Elongation | ≥100% | |||||||
| Aged condition | 113±1℃×168h | |||||||
| Percent of original tensile strength | ≥70% | |||||||
| Percent of original elongation | ≥65% | |||||||
UL758-E258652-20060111A-CertificateofCompliance(2)...
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
