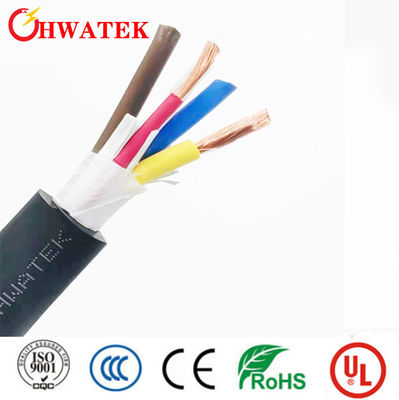

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

Basic Properties
Place of Origin: จีน
Brand Name: HWATEK
Certification: UL
Model Number: ซีแอล2
Trading Properties
Minimum Order Quantity: 1,000
Price: negotiable
Standard Packaging: วงล้อหรือม้วน
Delivery Time: 4 สัปดาห์
Payment Terms: t/t
Supply Ability: 1,000 กม./ เดือน
Product Summary
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable Product Specifications Construction Conductor Bare copper solid Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness ...

Product Details

เน้น:

Flame Test GB/T 18380.12 EV Charging Cable

,

Outdoor AC EV Power Charger Cable

,

Bare Copper Stranded Electric Vehicle Charging Cable

Rated Voltage: 150V
Rated Temperature: 75ºC
Conductor Material: ทองแดงเปลือยควั่น
Conductor Size: 16/0.254 มม.
Insulation Material: เอสอาร์-พีวีซี
Insulation Thickness: 0.23มม
Min Insulation Thickness: 0.2 มม.
Outer Diameter: 1.70 ± 0.10 มม.
Jacket Material: พีวีซี
Jacket Thickness: 0.84 มิลลิเมตร
Min Jacket Thickness: 0.66 มม.
Cable Outer Diameter: 6.00 ± 0.30 มม.
Max DC Resistance: 21.4Ω/km
Tensile Strength: ≥10.3mpa
Elongation: ≥100%
Spec: HT2504808
Product Description
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable Product Specifications Construction Conductor Bare copper solid Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness 0.20mm Insulation Dia. 1.70±0.10mm Insulation colour 1.red 2.white 3.green 4.blue Filler optional Assembly 4Cx18AWG Jacket PVC Nom.Thickness 0.84mm Min.Thickness 0.66mm Outer Dia.
