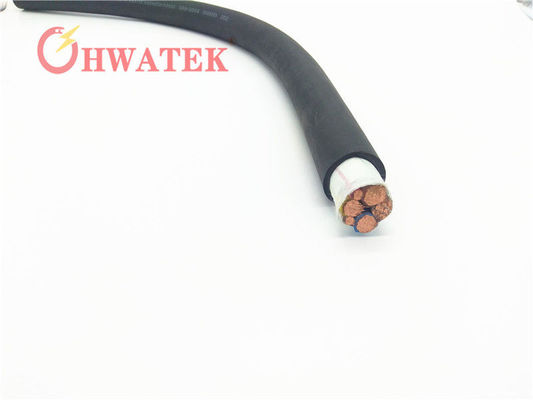

450V/750V AC/DC EV Charging Cable 2 X 50mm²+35mm²+6X0.75mm²
Basic Specifications
- Cable Specification: 200A, 70mm²
- Power: 1x50mm² Black Core + 1x50mm² Red Core
- PE: 1x35mm² Green-Yellow Core
- Signal: 3x Pairs 2x0.75mm²
- Cores Color: Orange, Blue, White, Violet, Brown, Grey
- Sheath Outer Diameter: ~31mm
- Cable Standard: IEC 62893, IEC 62893-4-1
Certification
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |

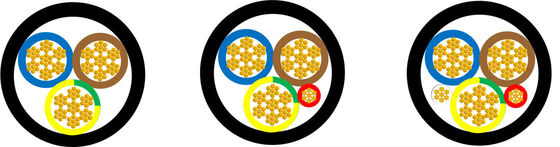

Structure Diagram
Technical Specifications
Reference Standard: IEC 62893, IEC 62893-4-1
Product Category
AC: EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90-450/750V 1.0-70(2-5C)+0.5-0.75(P/P2)(1-10C)
Construction Details
- Rated temperature: -40°C to +90°C
- Rated voltage: IEC 1500V DC / GB 1000V DC
- Conductor: Bare copper stranded
- Insulation material: EVI-2
- Sheath material: TPU
Key Features
- Flexible construction
- Resistant to cold, oil (11 types), ozone, abrasion, UV
- Withstands external pressure and thermal stress
- IEC60332-1 flammability test compliant
- Minimum bending radius: 5xOD
- Easy installation
Applications: Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameters
- The detailed dimensions are subject to the product specifications.
- Other specifications can be designed and manufactured according to customer requirements.
- The sheath color is typically black or orange, with custom options available.
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications. We serve global customers with a commitment to HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We hold UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Standard lead time is 2-3 weeks, extending to 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We conduct pre-production samples and final inspections before shipment.
